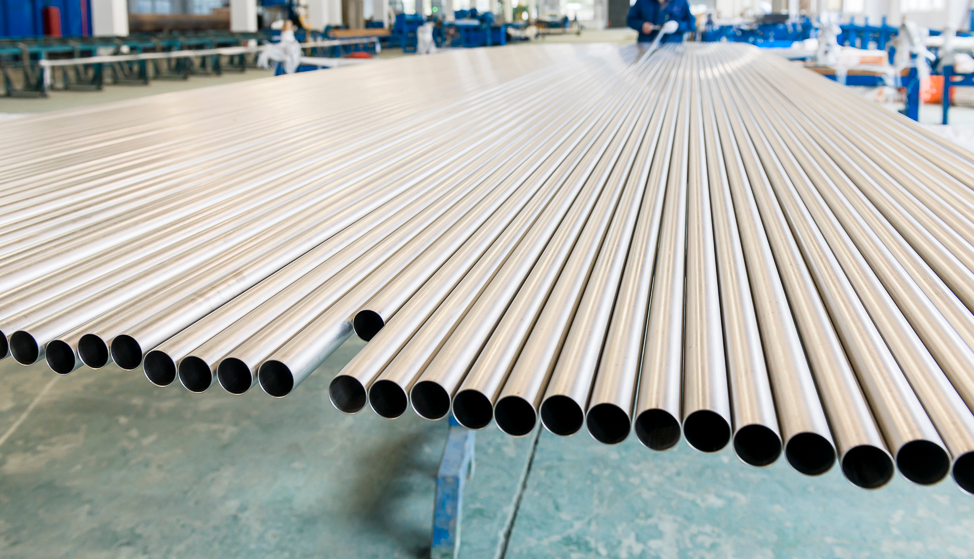

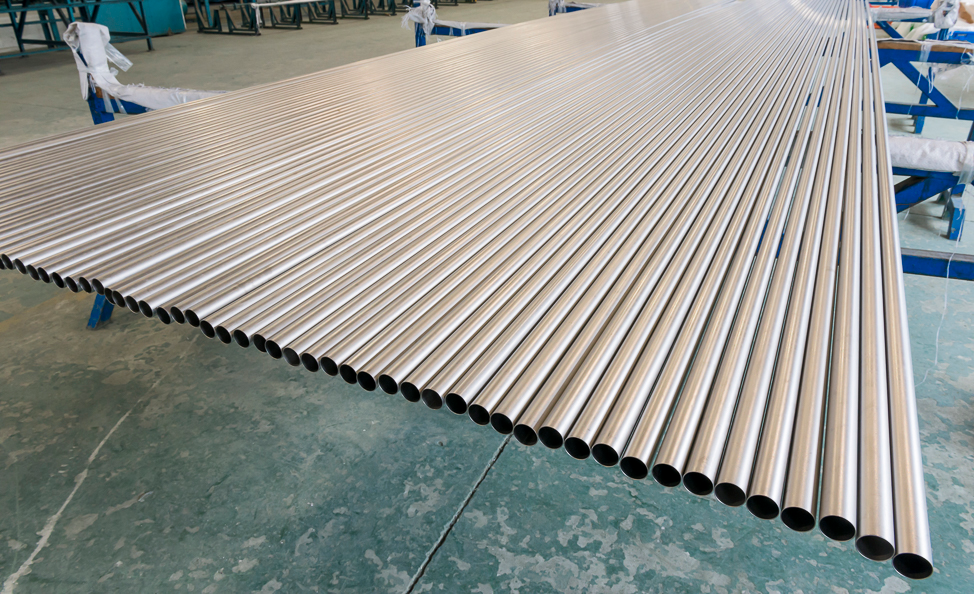

Seamless Titanium tube
Standard and Size:
Spec: ASTM B338/ASME SB338, ASTM B861/ASME SB861 & DIN17861
Material: Gr.1 Gr.2 Gr.3 Gr.7 Gr.9 Gr.11 Gr.12 Gr.16 Gr.17
Sizes range: OD?1.5-219mm, WT 0.3-8.0mm, Length?18000mm
Jiangsu Votti is the biggest private titanium tube manufacturer in China, which have integral titanium tube production chain from melting raw material, extruding hollow billets and rolling to finished tubes.
To Know About Titanium Tube:
1. Titanium tube has the advantages of light weight, high strength and superior mechanical properties. It is widely used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, serpentine tube heat exchanger, condenser, evaporator and conveying pipeline. Many nuclear power plants use titanium tube as the standard tube for their units.
?
2. The seamless titanium tube has high strength. The tensile strength of titanium alloy is 686-1176mpa, and the density is only about 60% of that of steel, so the specific strength is very high. The hardness of titanium alloy (annealed) is HRC32-38. Seamless titanium tube also has strong corrosion resistance. Titanium at 550In the air below ?, the surface will form thin and dense rapidlyTherefore, the corrosion resistance of titanium oxide film is better than that of most stainless steel in the oxidizing medium such as atmosphere, sea water, nitric acid and sulfuric acid and strong alkali.
3. Another great thing about titanium is that, just as there are different types of stainless steel, copper, nickel, there are many different grades of titanium tube.
For instance, ASTM has a variety of standards (principally ASTM B338/ASME SB338, ASTM B265/ASME SB265, ASTM B348/ASME SB348, and ASTM B381/ASME SB381) relating to the "recipes" for titanium grades used in different applications. If you look at the specs, you will see there are even multiple grades for unalloyed titanium, e.g. GR1, GR2, GR5, GR7, GR9 and GR12 etc.
4. Another advantage of titanium tube in medical devices is that it is?biocompatible.?Not only can the human body tolerate the use of titanium (which is important enough), but it is also?nonmagnetic中文 an increasingly important trait as the use of magnetic resonance imaging (MRI) becomes more common in medical diagnostics.
Titanium Tube Tensile Requirements
| Grade | Tensile Strength,min | Yield Stremgth,0.2%offset Yield | Elongation in? 2 in. or 50mm,?Min.% | ||||
| Ksi | Mpa | Min. | Max. | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
| 3 | 65 | 450 | 55 | 380 | 80 | 550 | 18 |
| 5 | 130 | 895 | 120 | 828 | 10 | ||
| 7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| 9A | 90 | 620 | 70 | 483 | 15C | ||
| 9B | 125 | 860 | 105 | 725 | 10 | ||
| 11 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
| 12 | 70 | 483 | 50 | 345 | 18C | ||
| 16 | 50 | 240 | 345 | 275 | 65 | 450 | 20 |
| 17 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
